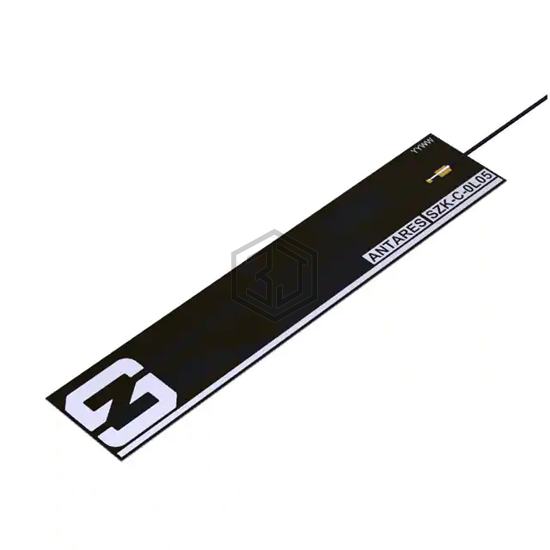

5G ANT FLAT PATCH IPEX
SZK-C-0L05 is a RF Antennas manufactured by Synzen. 5G ANT FLAT PATCH IPEX. Key specifications: mounting type Adhesive, termination U.FL (UMCC), IPEX MHF2, frequency range 617MHz ~ 960MHz, 1.427GHz ~ 1.66GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz.
In Stock: 140
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 657.5MHz, 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.595GHz, 3.55GHz |
| Frequency Range | 617MHz ~ 960MHz, 1.427GHz ~ 1.66GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz |
| Antenna Type | Flat Patch |
| Number of Bands | 7 |
| VSWR | 4.7, 1.52, 1.65, 1.85 |
| Return Loss | -4dB, -13dB, -12dB, -10dB |
| Gain | 3.2dBi, 3.1dBi, 3.7dBi, 4.5dBi |
| Power - Max | - |
| Features | - |
| Termination | U.FL (UMCC), IPEX MHF2 |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.008" (0.20mm) |
| Applications | 5G, 4G, 2G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA |
Submit your RFQ for SZK-C-0L05 and get a quote within 24 hours.
