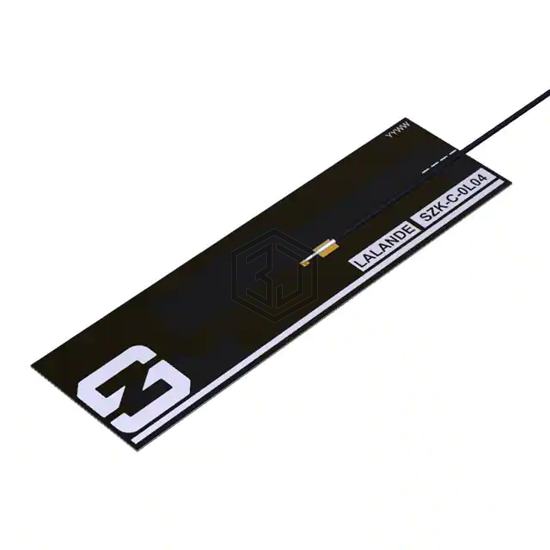

4G LTE ANT FLAT PATCH IPEX
SZK-C-0L04 is a RF Antennas manufactured by Synzen. 4G LTE ANT FLAT PATCH IPEX. Key specifications: mounting type Adhesive, termination U.FL (UMCC), IPEX MHF1, frequency range 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz.
In Stock: 150
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.94GHz, 2.35GHz, 2.595GHz |
| Frequency Range | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz |
| Antenna Type | Flat Patch |
| Number of Bands | 5 |
| VSWR | 2.3, 2.6, 2.9, 3.5 |
| Return Loss | -6dB, -11.3dB, -11.4dB, -13.8dB |
| Gain | 2.3dBi, 2.6dBi, 2.9dBi, 3.5dBi |
| Power - Max | - |
| Features | - |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.008" (0.20mm) |
| Applications | 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA |
Submit your RFQ for SZK-C-0L04 and get a quote within 24 hours.
