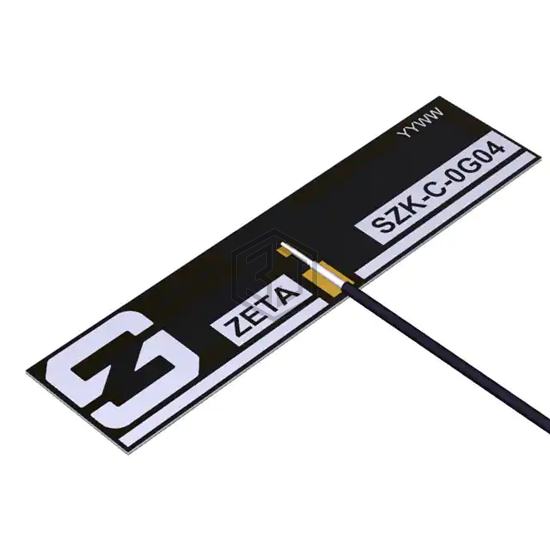

SZK-C-0G04
GNSS ANT FLAT PATCH IPEX
SZK-C-0G04 is a RF Antennas manufactured by Synzen. GNSS ANT FLAT PATCH IPEX. Key specifications: mounting type Adhesive, termination U.FL (UMCC), IPEX MHF6, frequency range 1.559GHz ~ 1.610GHz.
In Stock: 950
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.561GHz, 1.575GHz, 1.602GHz |
| Frequency Range | 1.559GHz ~ 1.610GHz |
| Antenna Type | Flat Patch |
| Number of Bands | 1 |
| VSWR | 1.65 |
| Return Loss | -12dB |
| Gain | 2dBi |
| Power - Max | - |
| Features | - |
| Termination | U.FL (UMCC), IPEX MHF6 |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.008" (0.20mm) |
| Applications | Beidou, Galileo, GLONASS, GPS |
Frequently Asked Questions
SZK-C-0G04 is a RF Antennas manufactured by Synzen. GNSS ANT FLAT PATCH IPEX
The mounting type of SZK-C-0G04 is Adhesive.
The termination type of SZK-C-0G04 is U.FL (UMCC), IPEX MHF6.
The frequency of SZK-C-0G04 is 1.559GHz ~ 1.610GHz.
