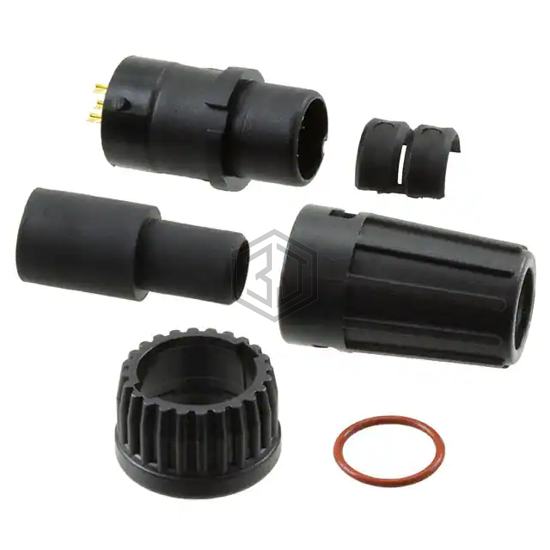

CONN PLUG MALE 8P GOLD SLDR CUP
W6A82-8PG-528 is a Circular Connectors manufactured by Conxall/Switchcraft. CONN PLUG MALE 8P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 85°C, voltage rating 250V, color Black.
In Stock: 192
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 8 (6 + 2 Power) |
| Shell Size - Insert | - |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Thermoplastic |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Features | Backshell, Coupling Nut, UV Resistant |
| Shielding | Unshielded |
| Current Rating (Amps) | 2A, 10A |
| Voltage Rating | 250V |
| Cable Opening | 0.260" ~ 0.285" (6.60mm ~ 7.24mm) |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for W6A82-8PG-528 and get a quote within 24 hours.
