CONN PLUG FMALE 12P SOLDER CUP

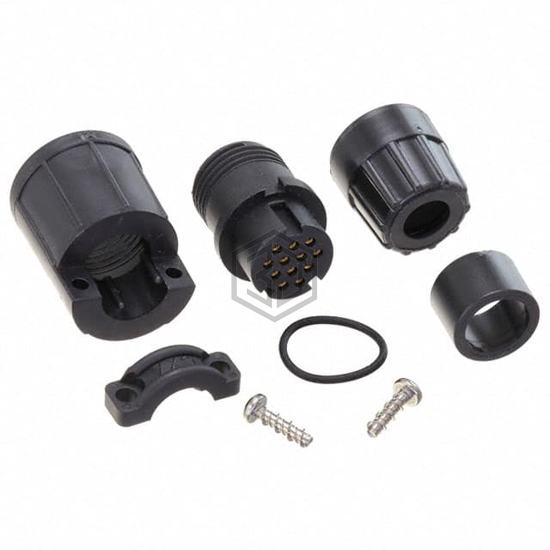

W3282-12SG-535 is a Circular Connectors manufactured by Conxall/Switchcraft. CONN PLUG FMALE 12P SOLDER CUP. Key specifications: mounting type Free Hanging (In-Line), voltage rating 600V, color Black, termination Solder Cup.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 12 |
| Shell Size - Insert | - |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | E |
| Primary Material | Plastic |
| Shell Material | Thermoplastic |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Features | Backshell, Cable Clamp, Coupling Nut |
| Shielding | Unshielded |
| Current Rating (Amps) | - |
| Voltage Rating | 600V |
| Cable Opening | 0.350" ~ 0.400" (8.89mm ~ 10.16mm) |
| Operating Temperature | - |
