CONN PLUG FMALE 9P GOLD SLDR CUP

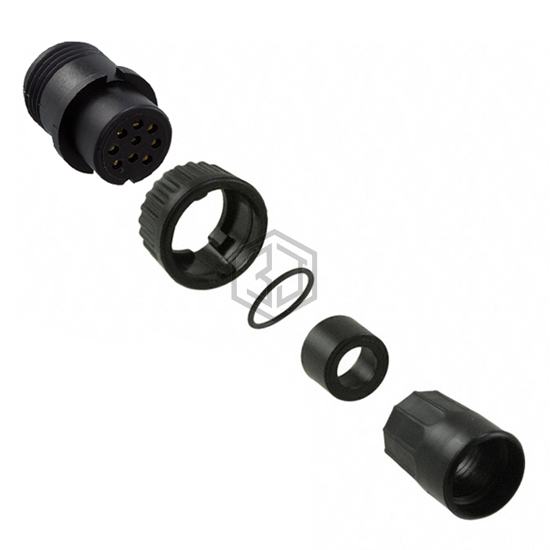

3282-9SG-330 is a Circular Connectors manufactured by Conxall/Switchcraft. CONN PLUG FMALE 9P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 115°C, voltage rating 600V, color Black.
In Stock: 21
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 9 |
| Shell Size - Insert | - |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA), Nylon |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Black |
| Ingress Protection | Weathertight |
| Material Flammability Rating | - |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 5.6A |
| Voltage Rating | 600V |
| Cable Opening | 0.300" ~ 0.320" (7.62mm ~ 8.13mm) |
| Operating Temperature | -40°C ~ 115°C |
Submit your RFQ for 3282-9SG-330 and get a quote within 24 hours.
