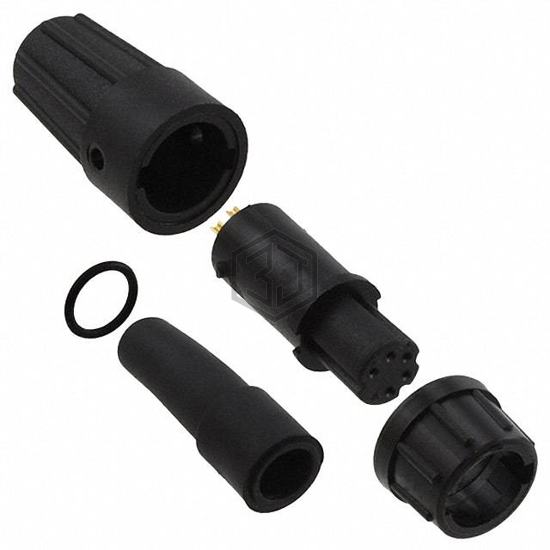

CONN PLUG FMALE 5P GOLD SLDR CUP
16982-5SG-522 is a Circular Connectors manufactured by Conxall/Switchcraft. CONN PLUG FMALE 5P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 85°C, voltage rating 600VAC/DC, color Black.
In Stock: 101
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 5 |
| Shell Size - Insert | - |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | B |
| Primary Material | Plastic |
| Shell Material | Thermoplastic |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 HB |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 4A |
| Voltage Rating | 600VAC/DC |
| Cable Opening | 0.220" ~ 0.230" (5.59mm ~ 5.84mm) |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for 16982-5SG-522 and get a quote within 24 hours.
