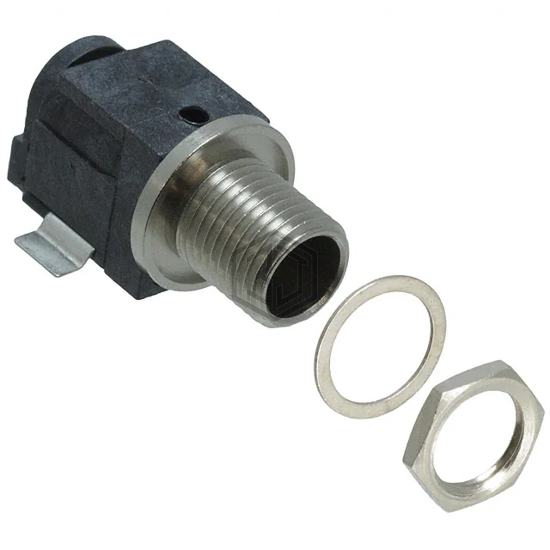

CONN PWR JACK 2X5.5MM SOLDER
RASSM10P is a Barrel - Power Connectors manufactured by Switchcraft Inc.. CONN PWR JACK 2X5.5MM SOLDER. Key specifications: mounting type Surface Mount, voltage - rated 24VDC, current rating (amps) 11 A, termination Solder.
In Stock: 387
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") |
| Actual Diameter | 0.079" (2.00mm ID), 0.252" (6.40mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Surface Mount |
| Mounting Feature | Bulkhead - Front Side Nut |
| Termination | Solder |
| Shielding | Unshielded |
| Features | Board Guide |
| Insulation Color | Silver |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 11 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for RASSM10P and get a quote within 24 hours.
