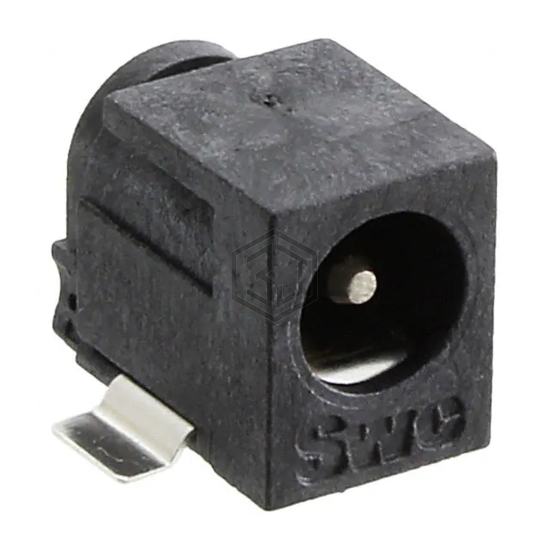

CONN PWR JACK 2X5.5MM SOLDER
RASM722PX is a Barrel - Power Connectors manufactured by Switchcraft Inc.. CONN PWR JACK 2X5.5MM SOLDER. Key specifications: mounting type Surface Mount, Right Angle, current rating (amps) 5 A, termination Solder, number of positions/contacts 2 Conductors, 3 Contacts.
In Stock: 12,626
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") |
| Actual Diameter | 0.076" (1.93mm ID), 0.248" (6.30mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Surface Mount, Right Angle |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Unshielded |
| Features | - |
| Insulation Color | - |
| Voltage - Rated | - |
| Current Rating (Amps) | 5 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for RASM722PX and get a quote within 24 hours.
