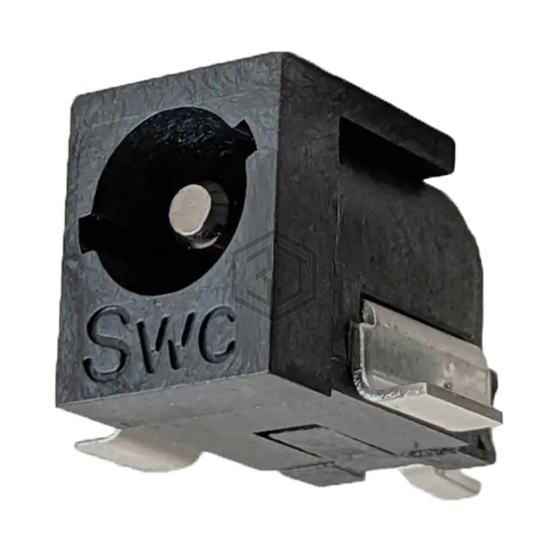

DC POWER JACK, BKZ LOCKING SERIE
RASM712BKZ is a Barrel - Power Connectors manufactured by Switchcraft Inc.. DC POWER JACK, BKZ LOCKING SERIE. Key specifications: mounting type Surface Mount, Right Angle, voltage - rated 100VDC, current rating (amps) 5 A, termination Solder.
In Stock: 1,289
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Actual Diameter | 0.098" (2.50mm ID), 0.248" (6.30mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Surface Mount, Right Angle |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Unshielded |
| Features | - |
| Insulation Color | Black |
| Voltage - Rated | 100VDC |
| Current Rating (Amps) | 5 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for RASM712BKZ and get a quote within 24 hours.
