LONGER BUSHING D-FLA

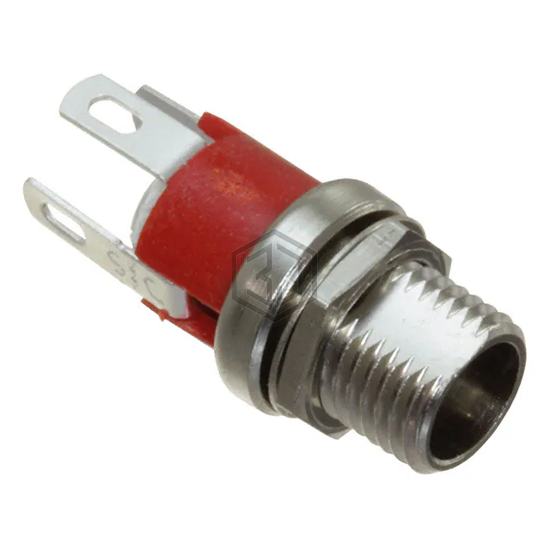

L721A is a Barrel - Power Connectors manufactured by Switchcraft Inc.. LONGER BUSHING D-FLA. Key specifications: mounting type Panel Mount, Through Hole, voltage - rated 30VDC, current rating (amps) 5 A, termination Solder Eyelet(s).
In Stock: 7,356
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.10mm ID (0.083"), 5.50mm OD (0.217") |
| Actual Diameter | 0.083" (2.10mm ID), 0.217" (5.50mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Panel Mount, Through Hole |
| Mounting Feature | Bulkhead - Front Side Nut |
| Termination | Solder Eyelet(s) |
| Shielding | Unshielded |
| Features | Mounting Hardware, Thread Lock |
| Insulation Color | - |
| Voltage - Rated | 30VDC |
| Current Rating (Amps) | 5 A |
| Mating Length/Depth | 0.476" (12.10mm) |
| Ingress Protection | - |
| Material Flammability Rating | - |
