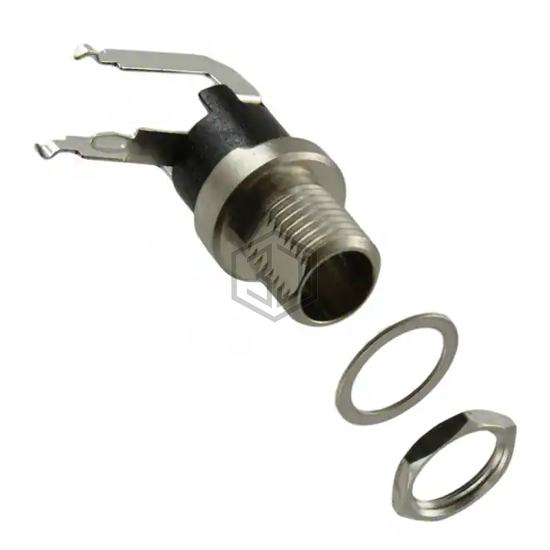

CONN PWR JACK 2.5X5.5MM SOLDER
L712RA is a Barrel - Power Connectors manufactured by Switchcraft Inc.. CONN PWR JACK 2.5X5.5MM SOLDER. Key specifications: mounting type Panel Mount, Through Hole, Right Angle, voltage - rated 48VDC, current rating (amps) 5 A, termination Solder.
In Stock: 5,317
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Actual Diameter | 0.098" (2.50mm ID), 0.228" (5.80mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut |
| Termination | Solder |
| Shielding | Unshielded |
| Features | Mounting Hardware, Thread Lock |
| Insulation Color | - |
| Voltage - Rated | 48VDC |
| Current Rating (Amps) | 5 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for L712RA and get a quote within 24 hours.
