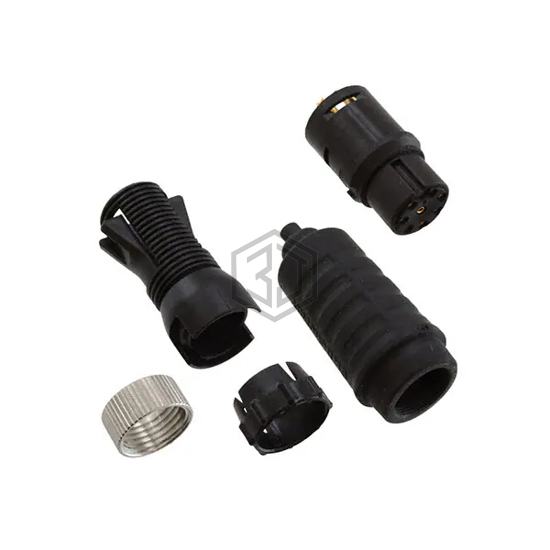

CONN PLUG FMALE 8P GOLD SLDR CUP
EN3C8FLX is a Circular Connectors manufactured by Switchcraft Inc.. CONN PLUG FMALE 8P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 65°C, voltage rating 250VAC/DC, color Black.
In Stock: 423
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 8 |
| Shell Size - Insert | - |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Thermoplastic |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Black |
| Ingress Protection | IP66/IP68 - Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Cable Clamp, Coupling Nut |
| Shielding | Unshielded |
| Current Rating (Amps) | 6.5A |
| Voltage Rating | 250VAC/DC |
| Cable Opening | 0.230" ~ 0.380" (5.84mm ~ 9.65mm) |
| Operating Temperature | -40°C ~ 65°C |
Submit your RFQ for EN3C8FLX and get a quote within 24 hours.
