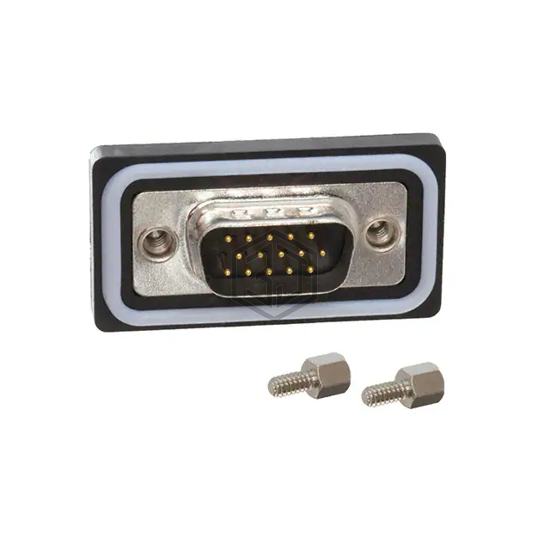

CONN D-SUB HD PLUG 15POS PNL MNT
DCPHD15MSC1 is a D-Sub Connectors manufactured by Switchcraft Inc.. CONN D-SUB HD PLUG 15POS PNL MNT. Key specifications: mounting type Panel Mount, current rating (amps) 2A, termination Solder Cup, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 23
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, High Density |
| Connector Type | Plug, Male Pins |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Mounting Type | Panel Mount |
| Shell Size, Connector Layout | 1 (DE, E) High Density |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock |
| Termination | Solder Cup |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 2A |
| Backset Spacing | - |
| Features | Gasket |
Submit your RFQ for DCPHD15MSC1 and get a quote within 24 hours.
