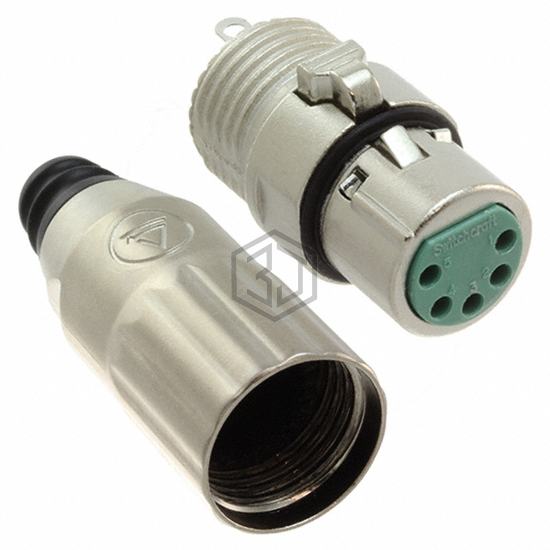

CONN PLUG FMALE XLR 5POS SOLDER
AAA5FZ is a Circular Connectors manufactured by Switchcraft Inc.. CONN PLUG FMALE XLR 5POS SOLDER. Key specifications: mounting type Free Hanging (In-Line), voltage rating 125VAC, color Silver, current rating (amps) 7.5A.
In Stock: 101
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 5 |
| Shell Size - Insert | XLR |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Latch Lock |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Zinc Alloy |
| Shell Finish | Nickel |
| Contact Finish - Mating | Silver |
| Color | Silver |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Features | Backshell, Cable Clamp, Ground, Strain Relief |
| Shielding | Shielded |
| Current Rating (Amps) | 7.5A |
| Voltage Rating | 125VAC |
| Cable Opening | 0.100" ~ 0.220" (2.54mm ~ 5.59mm) |
| Operating Temperature | - |
Submit your RFQ for AAA5FZ and get a quote within 24 hours.
