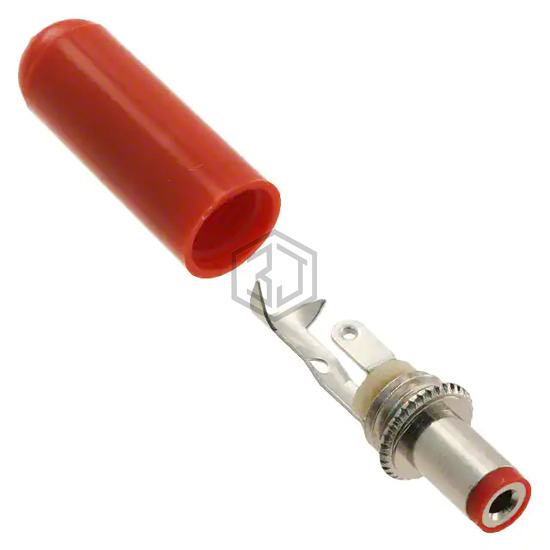

CONN PWR PLUG 2.1X5.5MM SOLDER
763 is a Barrel - Power Connectors manufactured by Switchcraft Inc.. CONN PWR PLUG 2.1X5.5MM SOLDER. Key specifications: mounting type Free Hanging (In-Line), current rating (amps) 5 A, termination Solder Eyelet(s), number of positions/contacts 2 Conductors, 2 Contacts.
In Stock: 2,364
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug |
| Gender | Female |
| Industry Recognized Mating Diameter | 2.10mm ID (0.083"), 5.50mm OD (0.217") |
| Actual Diameter | 0.083" (2.10mm ID), 0.217" (5.50mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Eyelet(s) |
| Shielding | Unshielded |
| Features | - |
| Insulation Color | Red |
| Voltage - Rated | - |
| Current Rating (Amps) | 5 A |
| Mating Length/Depth | 0.374" (9.50mm) |
| Ingress Protection | - |
| Material Flammability Rating | - |
