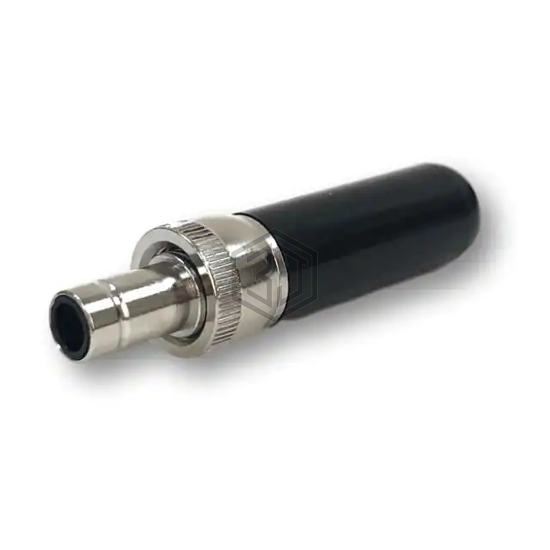

DC POWER PLUG, Z SERIES, 2.5MM X
760KZ is a Barrel - Power Connectors manufactured by Switchcraft Inc.. DC POWER PLUG, Z SERIES, 2.5MM X. Key specifications: mounting type Free Hanging (In-Line), voltage - rated 24VDC, current rating (amps) 5 A, termination Solder Eyelet(s).
In Stock: 2,124
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug |
| Gender | Female |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Actual Diameter | 0.098" (2.50mm ID), 0.217" (5.50mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Eyelet(s) |
| Shielding | Unshielded |
| Features | Cable Clamp, Thread Lock |
| Insulation Color | Black |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 5 A |
| Mating Length/Depth | 0.374" (9.50mm) |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for 760KZ and get a quote within 24 hours.
