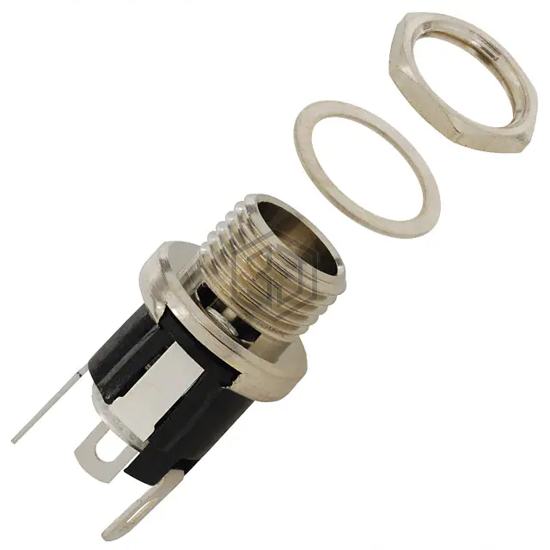

CONN POWER JACK SOLDER EYELET
722A is a Barrel - Power Connectors manufactured by Switchcraft Inc.. CONN POWER JACK SOLDER EYELET. Key specifications: mounting type Panel Mount, voltage - rated 48V, current rating (amps) 5 A, termination Solder Eyelet(s).
In Stock: 10,240
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") |
| Actual Diameter | - |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut |
| Termination | Solder Eyelet(s) |
| Shielding | Unshielded |
| Features | Mounting Hardware, Thread Lock |
| Insulation Color | - |
| Voltage - Rated | 48V |
| Current Rating (Amps) | 5 A |
| Mating Length/Depth | 0.374" (9.50mm) |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for 722A and get a quote within 24 hours.
