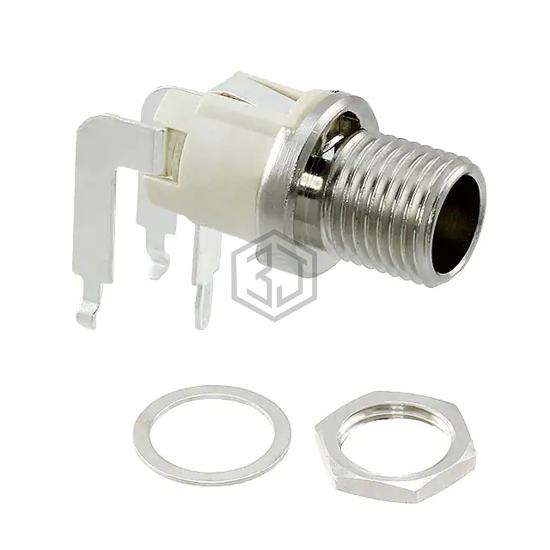

JACK, 2.5MM PIN, SHORT BUSHING,
712RAH is a Barrel - Power Connectors manufactured by Switchcraft Inc.. JACK, 2.5MM PIN, SHORT BUSHING,. Key specifications: mounting type Through Hole, Right Angle, voltage - rated 24VDC, termination Solder Eyelet(s), number of positions/contacts 2 Conductors, 3 Contacts.
In Stock: 600
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Actual Diameter | 0.098" (2.50mm ID), 0.217" (5.50mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch |
| Mounting Type | Through Hole, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut |
| Termination | Solder Eyelet(s) |
| Shielding | Unshielded |
| Features | Mounting Hardware, Thread Lock |
| Insulation Color | - |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | - |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for 712RAH and get a quote within 24 hours.
