DC POWER JACK, SHIELDED, FRONT P

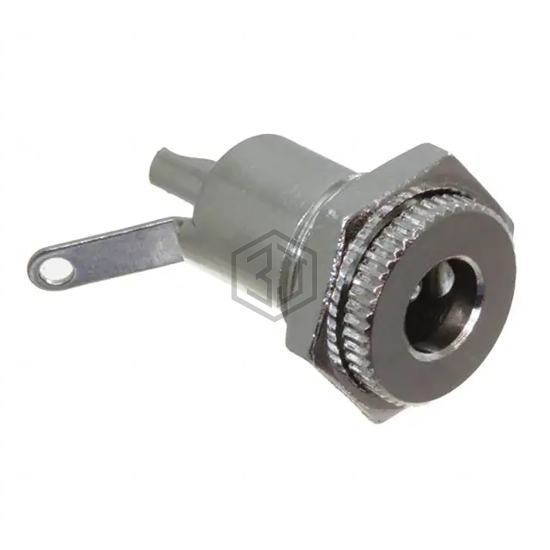

712AFMS is a Barrel - Power Connectors manufactured by Switchcraft Inc.. DC POWER JACK, SHIELDED, FRONT P. Key specifications: mounting type Panel Mount, voltage - rated 48VAC/DC, current rating (amps) 5 A, termination Solder Cup, Solder Eyelet.
In Stock: 10,698
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Actual Diameter | 0.098" (2.50mm ID), 0.217" (5.50mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Termination | Solder Cup, Solder Eyelet |
| Shielding | Shielded |
| Features | - |
| Insulation Color | Silver |
| Voltage - Rated | 48VAC/DC |
| Current Rating (Amps) | 5 A |
| Mating Length/Depth | 0.374" (9.50mm) |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for 712AFMS and get a quote within 24 hours.
