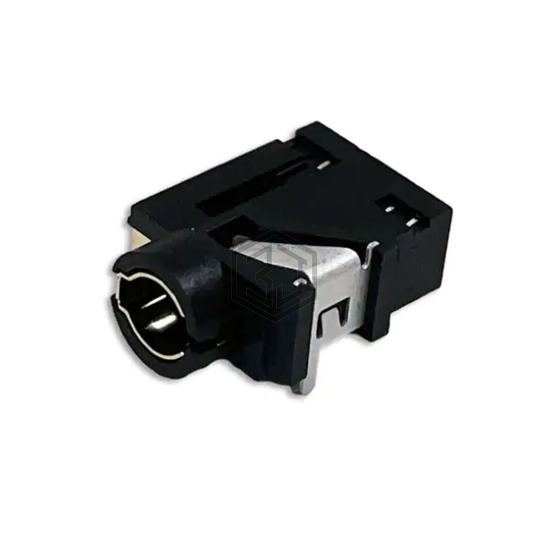

35RAPC5CHWNSN - Switchcraft Inc. - Barrel - Audio Connectors

35RAPC5CHWNSN

Switchcraft Inc.

3.5MM RAPC JACK, WIDE BODY, TRRS

35RAPC5CHWNSN is a Barrel - Audio Connectors manufactured by Switchcraft Inc.. 3.5MM RAPC JACK, WIDE BODY, TRRS. Key specifications: mounting type Through Hole, Right Angle, termination Solder, number of positions/contacts 4 Conductors, 4 Contacts, connector type Phone Jack.

In Stock: 1,120

Product Attributes

AttributeValue
Product StatusActive
Connector TypePhone Jack
GenderFemale
Signal LinesStereo (4 Conductor, TRRS)
Industry Recognized Mating Diameter3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter0.142" (3.60mm)
Number of Positions/Contacts4 Conductors, 4 Contacts
Internal Switch(s)Does Not Contain Switch
Mounting TypeThrough Hole, Right Angle
TerminationSolder
ShieldingUnshielded
FeaturesBoard Guide
Insulation Color-
Operating Temperature-

Frequently Asked Questions

35RAPC5CHWNSN is a Barrel - Audio Connectors manufactured by Switchcraft Inc.. 3.5MM RAPC JACK, WIDE BODY, TRRS

The mounting type of 35RAPC5CHWNSN is Through Hole, Right Angle.

The termination type of 35RAPC5CHWNSN is Solder.

The number of positions of 35RAPC5CHWNSN is 4 Conductors, 4 Contacts.

The shielding of 35RAPC5CHWNSN is Unshielded.
