RES 0.022 OHM 2W 3008 WIDE

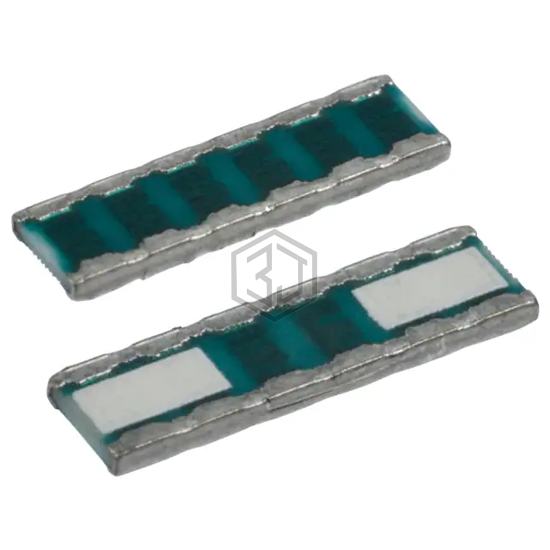

RL7520WT-R022-G is a Chip Resistor - Surface Mount manufactured by Susumu. RES 0.022 OHM 2W 3008 WIDE. Key specifications: operating temperature -55°C ~ 125°C, package / case Wide 3008 (2075 Metric), 0830, size / dimension 0.079" L x 0.295" W (2.00mm x 7.50mm), power (watts) 2W.
In Stock: 5,629
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 22 mOhms |
| Tolerance | ±2% |
| Power (Watts) | 2W |
| Composition | Thin Film |
| Features | Current Sense |
| Temperature Coefficient | 0/ +350ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | Wide 3008 (2075 Metric), 0830 |
| Supplier Device Package | 0830 |
| Ratings | - |
| Size / Dimension | 0.079" L x 0.295" W (2.00mm x 7.50mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RL7520WT-R022-F | Susumu | RES 0.022 OHM 2W 3008 WIDE | 100% | View |
| RL3720T-R022-G | Susumu | RES 0.022 OHM 1/2W 1508 WIDE | 69% | View |
| RL1220T-R022-G | Susumu | RES 0.022 OHM 2% 1/4W 0805 | 69% | View |
| RL1220T-R022-J | Susumu | RES 0.022 OHM 5% 1/4W 0805 | 69% | View |
| RL3720WT-R022-G | Susumu | RES 0.022 OHM 1W 1508 WIDE | 69% | View |
| RL0816T-R022-G | Susumu | RES 0.022 OHM 2% 1/4W 0603 | 66% | View |
Submit your RFQ for RL7520WT-R022-G and get a quote within 24 hours.
