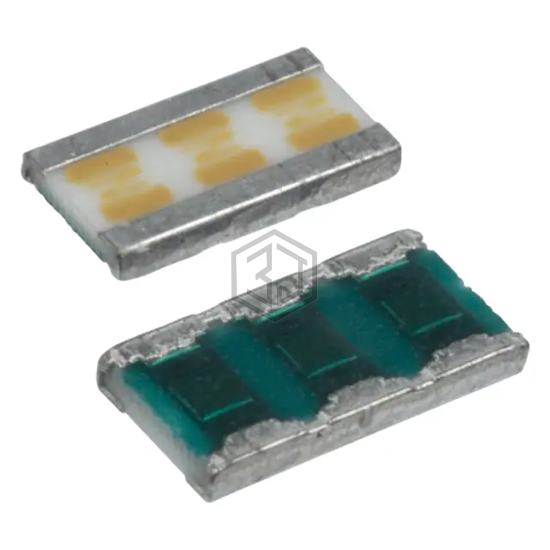

RES 0.22 OHM 1/2W 1508 WIDE
RL3720S-R22-G is a Chip Resistor - Surface Mount manufactured by Susumu. RES 0.22 OHM 1/2W 1508 WIDE. Key specifications: operating temperature -55°C ~ 125°C, package / case Wide 1508 (3720 Metric), 0815, size / dimension 0.079" L x 0.148" W (2.00mm x 3.75mm), power (watts) 0.5W, 1/2W.
In Stock: 8,506
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 220 mOhms |
| Tolerance | ±2% |
| Power (Watts) | 0.5W, 1/2W |
| Composition | Thin Film |
| Features | Current Sense |
| Temperature Coefficient | 0/ +200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | Wide 1508 (3720 Metric), 0815 |
| Supplier Device Package | 0815 |
| Ratings | - |
| Size / Dimension | 0.079" L x 0.148" W (2.00mm x 3.75mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CSRT0805FTR220 | Stackpole Electronics Inc | RES, CS, 0805, 0.22 OHM, 1%, 0.5 | 100% | View |
| CSRT0603FTR220 | Stackpole Electronics Inc | RES, CS, 0603, 0.22 OHM, 1%, 0.4 | 87% | View |
| MMA02040C2207FB002 | Vishay Beyschlag/Draloric/BC Components | RES 0.22 OHM 1% 2/5W MELF 0204 | 77% | View |
| MMA02040C2207JB300 | Vishay Beyschlag/Draloric/BC Components | RES 0.22 OHM 5% 0.4W 0204 | 77% | View |
| RL7520WS-R22-F | Susumu | RES 0.22 OHM 2W 3008 WIDE | 69% | View |
| RL3720WS-R22-F | Susumu | RES 0.22 OHM 1W 1508 WIDE | 69% | View |
Submit your RFQ for RL3720S-R22-G and get a quote within 24 hours.
