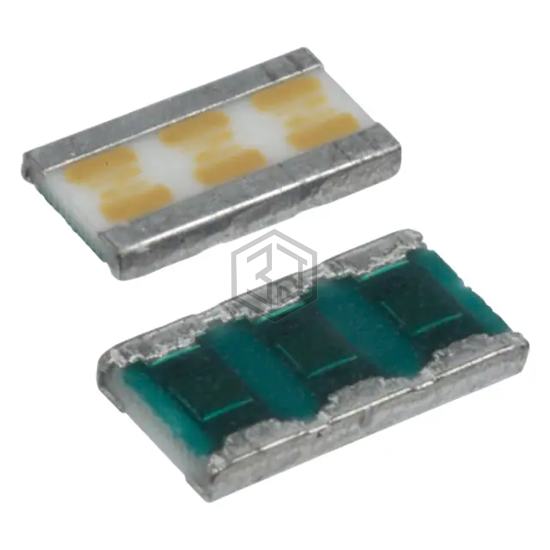

RES SMD 2.2 OHM 1/2W 1508 WIDE
RL3720R-2R2-F is a Chip Resistor - Surface Mount manufactured by Susumu. RES SMD 2.2 OHM 1/2W 1508 WIDE. Key specifications: operating temperature -55°C ~ 125°C, package / case Wide 1508 (3720 Metric), 0815, size / dimension 0.079" L x 0.148" W (2.00mm x 3.75mm), power (watts) 0.5W, 1/2W.
In Stock: 6,006
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 2.2 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 0.5W, 1/2W |
| Composition | Thin Film |
| Features | Current Sense |
| Temperature Coefficient | 0/ +100ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | Wide 1508 (3720 Metric), 0815 |
| Supplier Device Package | 0815 |
| Ratings | - |
| Size / Dimension | 0.079" L x 0.148" W (2.00mm x 3.75mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MLF12FTC2R20 | Stackpole Electronics Inc | RES, MELF, 0207, 2.2 OHM, 1%, 50 | 87% | View |
| MMA02040C2208FB3SY | Vishay Beyschlag/Draloric/BC Components | RES 2.2 OHM 1% 2/5W MELF 0204 | 77% | View |
| RT0805CRD072R2L | YAGEO | RES SMD 2.2 OHM 0.25% 1/8W 0805 | 69% | View |
| RT0805DRE072R2L | YAGEO | RES 2.2 OHM 0.5% 1/8W 0805 | 69% | View |
| RT0603CRE072R2L | YAGEO | RES SMD 2.2 OHM 0.25% 1/10W 0603 | 66% | View |
| TNPW12062R20DEEA | Vishay Dale | RES 2.2 OHM 0.5% 1/4W 1206 | 65% | View |
Submit your RFQ for RL3720R-2R2-F and get a quote within 24 hours.
