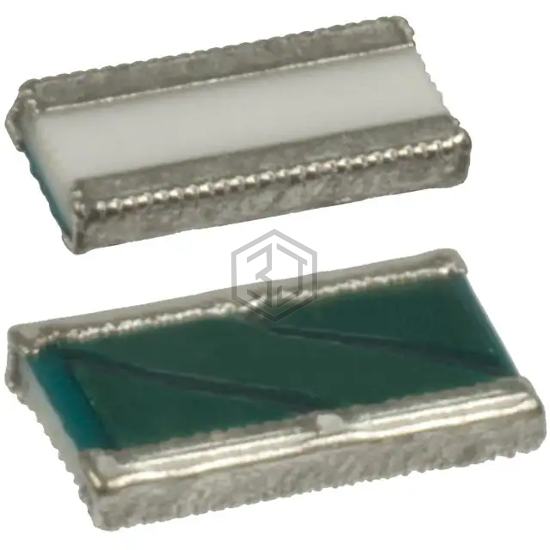

RES 0.008 OHM 1W 1206 WIDE
PRL1632-R008-F-T1 is a Chip Resistor - Surface Mount manufactured by Susumu. RES 0.008 OHM 1W 1206 WIDE. Key specifications: operating temperature -55°C ~ 125°C, package / case Wide 1206 (3216 Metric), 0612, size / dimension 0.063" L x 0.126" W (1.60mm x 3.20mm), power (watts) 1W.
In Stock: 2,773
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 8 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 1W |
| Composition | Thin Film |
| Features | Current Sense |
| Temperature Coefficient | 0/ +350ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | Wide 1206 (3216 Metric), 0612 |
| Supplier Device Package | 1206 |
| Ratings | - |
| Size / Dimension | 0.063" L x 0.126" W (1.60mm x 3.20mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RL3720WT-R008-J | Susumu | RES 0.008 OHM 1W 1508 WIDE | 96% | View |
| RL3720WT-R008-F | Susumu | RES 0.008 OHM 1W 1508 WIDE | 96% | View |
| RL3264L4-R008-F | Susumu | RES 0.008 OHM 1% 1W 2512 | 86% | View |
| MMB02070C8204FB200 | Vishay Beyschlag/Draloric/BC Components | RES SMD 8.2M OHM 1% 1W 0207 | 83% | View |
| SMM02040C8204FB000 | Vishay Beyschlag/Draloric/BC Components | RES 8.2M OHM 1% 1/4W MELF 0204 | 62% | View |
| SMM02040C8204FB300 | Vishay Beyschlag/Draloric/BC Components | RES 8.2M OHM 1% 1/4W MELF 0204 | 62% | View |
Submit your RFQ for PRL1632-R008-F-T1 and get a quote within 24 hours.
