FIXED IND 470NH 17.5A 4.2MOHM SM

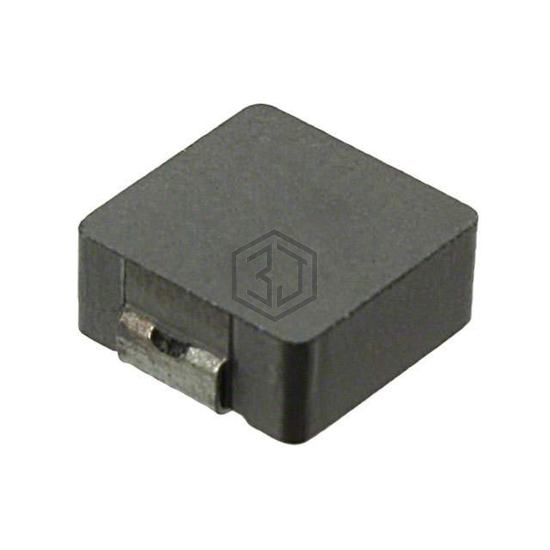

PCMB063T-R47MS is a Fixed Inductors manufactured by Susumu. FIXED IND 470NH 17.5A 4.2MOHM SM. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 17.5 A, size / dimension 0.274" L x 0.260" W (6.95mm x 6.60mm).
In Stock: 9,367
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 17.5 A |
| Current - Saturation (Isat) | 26A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 4.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.274" L x 0.260" W (6.95mm x 6.60mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
