FIXED IND 100NH 32.5A 1.7MOHM SM

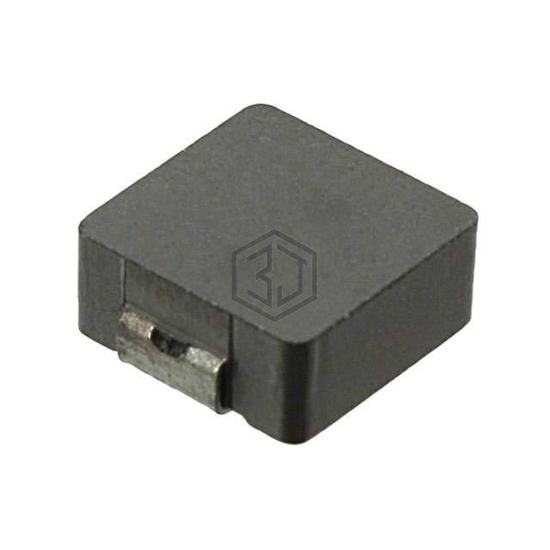

PCMB063T-R10MS is a Fixed Inductors manufactured by Susumu. FIXED IND 100NH 32.5A 1.7MOHM SM. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 32.5 A, size / dimension 0.274" L x 0.260" W (6.95mm x 6.60mm).
In Stock: 394
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 100 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 32.5 A |
| Current - Saturation (Isat) | 60A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.7mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.274" L x 0.260" W (6.95mm x 6.60mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
Submit your RFQ for PCMB063T-R10MS and get a quote within 24 hours.
