FIXED IND 2.2UH 5.5A 35 MOHM SMD

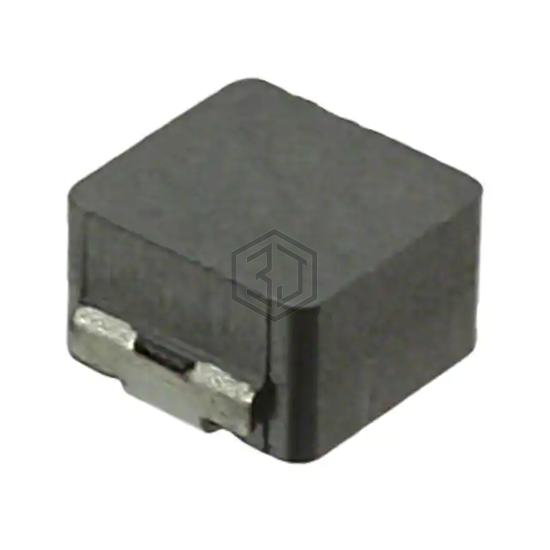

PCMB053T-2R2MS is a Fixed Inductors manufactured by Susumu. FIXED IND 2.2UH 5.5A 35 MOHM SMD. Key specifications: mounting type Surface Mount, package / case 1919 (4848 Metric), current rating (amps) 5.5 A, size / dimension 0.191" L x 0.185" W (4.85mm x 4.70mm).
In Stock: 2,480
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.5 A |
| Current - Saturation (Isat) | 9A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 35mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1919 (4848 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.191" L x 0.185" W (4.85mm x 4.70mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
Submit your RFQ for PCMB053T-2R2MS and get a quote within 24 hours.
