FIXED IND 1.2UH 6.5A 16 MOHM SMD

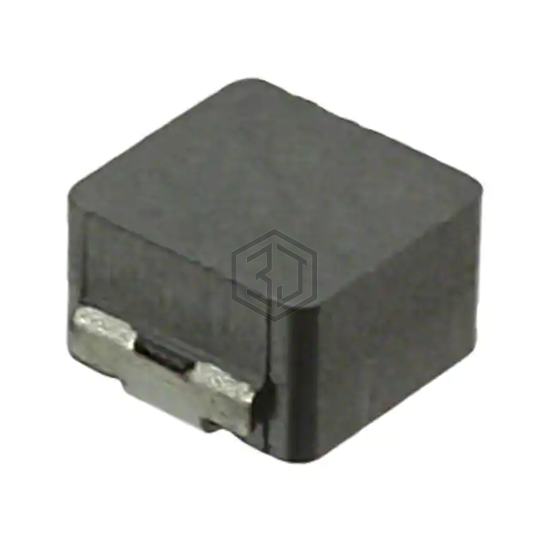

PCMB053T-1R2MS is a Fixed Inductors manufactured by Susumu. FIXED IND 1.2UH 6.5A 16 MOHM SMD. Key specifications: mounting type Surface Mount, package / case 1919 (4848 Metric), current rating (amps) 6.5 A, size / dimension 0.191" L x 0.185" W (4.85mm x 4.70mm).
In Stock: 22,776
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 1.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6.5 A |
| Current - Saturation (Isat) | 11A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 16mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1919 (4848 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.191" L x 0.185" W (4.85mm x 4.70mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
