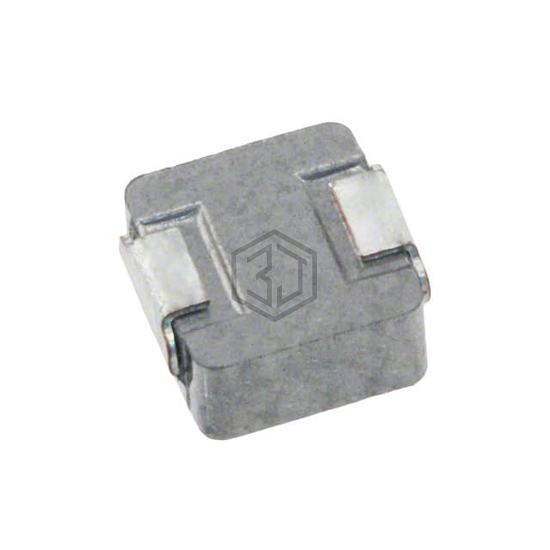

FIXED IND 220NH 9A 6.6 MOHM SMD
PCMB042T-R22MS is a Fixed Inductors manufactured by Susumu. FIXED IND 220NH 9A 6.6 MOHM SMD. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 9 A, size / dimension 0.163" L x 0.157" W (4.15mm x 4.00mm).
In Stock: 7,636
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 220 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 9 A |
| Current - Saturation (Isat) | 12.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 6.6mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.163" L x 0.157" W (4.15mm x 4.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
Submit your RFQ for PCMB042T-R22MS and get a quote within 24 hours.
