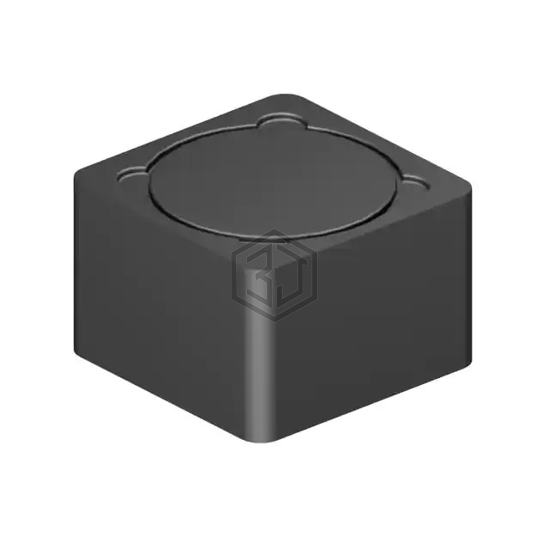

FIXED IND 33UH SMD 3.7A 67.5MOHM
SIDSP-SD1280-330M is a Fixed Inductors manufactured by Suntsu Electronics, Inc.. FIXED IND 33UH SMD 3.7A 67.5MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.7 A.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.7 A |
| Current - Saturation (Isat) | 5.68A |
| Shielding | Shielded |
| DC Resistance (DCR) | 67.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.317" (8.05mm) |
Submit your RFQ for SIDSP-SD1280-330M and get a quote within 24 hours.
