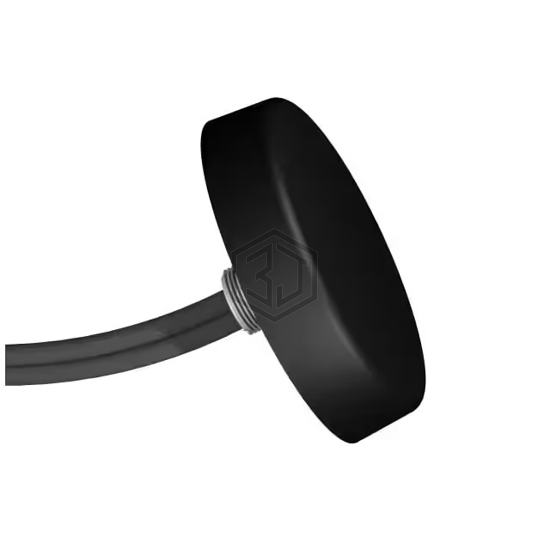

RF ANT 1572-1610MHZ COMBO SCREW
SATOA-84A84A14G-CMB1 is a RF Antennas manufactured by Suntsu Electronics, Inc.. RF ANT 1572-1610MHZ COMBO SCREW. Key specifications: mounting type Panel Mount, termination SMA Male (2), RP-SMA Male (1), frequency range 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.4835GHz.
In Stock: 93
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 892MHz, 1.575GHz, 1.94GHz, 2.44175GHz |
| Frequency Range | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.4835GHz |
| Antenna Type | Module |
| Number of Bands | 4 |
| VSWR | 1.5, 2 |
| Return Loss | - |
| Gain | 2dBi, 2dBi, 2dBi, 3dBi |
| Power - Max | - |
| Features | Cable - 3m, LNA |
| Termination | SMA Male (2), RP-SMA Male (1) |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Height (Max) | 0.575" (14.60mm) |
| Applications | GPS, GSM, Wi-Fi |
Submit your RFQ for SATOA-84A84A14G-CMB1 and get a quote within 24 hours.
