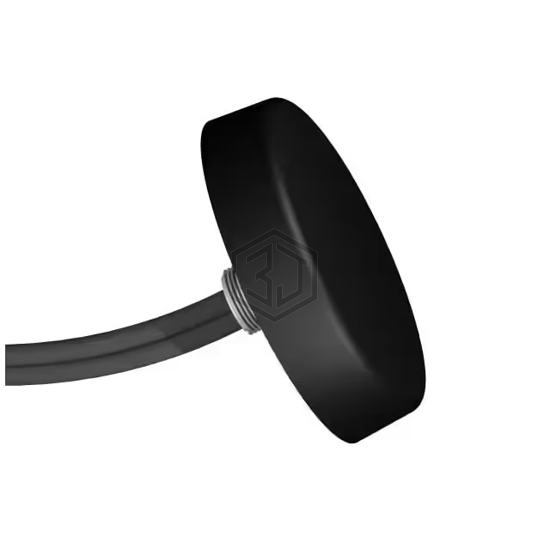

RF ANT 1572-1610MHZ COMBO SCREW
SATOA-81D81D14G-CMB6 is a RF Antennas manufactured by Suntsu Electronics, Inc.. RF ANT 1572-1610MHZ COMBO SCREW. Key specifications: mounting type Panel Mount, termination SMA Male (2), frequency range 698MHz ~ 960MHz, 1.572GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz.
In Stock: 87
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 829MHz, 1.591GHz, 1.94GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.572GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz |
| Antenna Type | Module |
| Number of Bands | 3 |
| VSWR | 1.5, 3 |
| Return Loss | - |
| Gain | 2.5dBi, 2dBi, 2.5dBi |
| Power - Max | - |
| Features | Cable - 2m, LNA |
| Termination | SMA Male (2) |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Height (Max) | 0.575" (14.60mm) |
| Applications | 3G/4G, GLONASS, GPS, GSM, LTE |
Submit your RFQ for SATOA-81D81D14G-CMB6 and get a quote within 24 hours.
