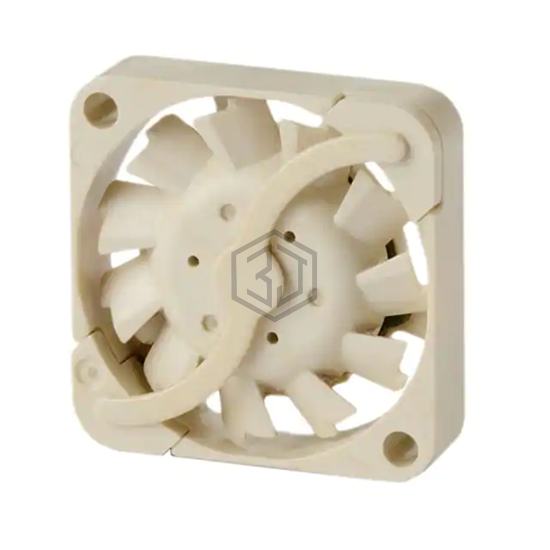

UF3F3-700B - Sunon Fans - DC Brushless Fans (BLDC)

UF3F3-700B

Sunon Fans

FAN 3VDC 15X3MM IP58

UF3F3-700B is a DC Brushless Fans (BLDC) manufactured by Sunon Fans. FAN 3VDC 15X3MM IP58. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 3VDC, size / dimension Square - 15mm L x 15mm H, termination 2 Wire Leads.

In Stock: 196

Product Attributes

AttributeValue
Product StatusActive
Voltage - Rated3VDC
Size / DimensionSquare - 15mm L x 15mm H
Width3.00mm
Air Flow0.309 CFM (0.009m³/min)
Static Pressure0.082 in H2O (20.4 Pa)
Bearing TypeVapo-Bearing™
Fan TypeTubeaxial
FeaturesAuto Restart
Noise30.0dB(A)
Power (Watts)100 mW
RPM14500 RPM
Termination2 Wire Leads
Ingress ProtectionIP58 - Dust Protected, Waterproof
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Approval AgencyCE
Weight0.003 lb (1.36 g)

Frequently Asked Questions

UF3F3-700B is a DC Brushless Fans (BLDC) manufactured by Sunon Fans. FAN 3VDC 15X3MM IP58

The operating temperature range of UF3F3-700B is 14 ~ 158°F (-10 ~ 70°C).

The supply voltage of UF3F3-700B is 3VDC.

The size of UF3F3-700B is Square - 15mm L x 15mm H.
