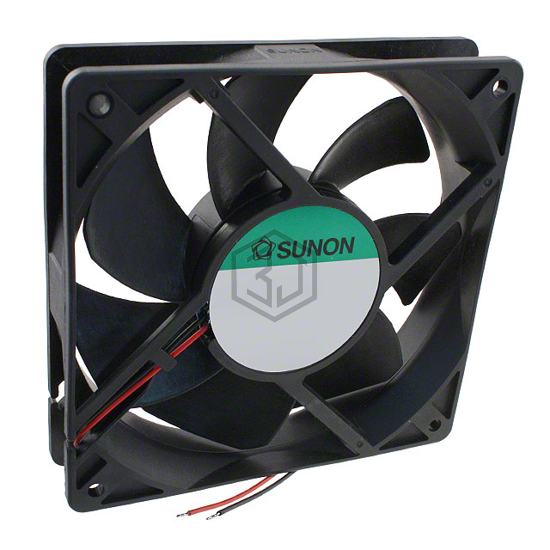

PMD2412PTB1-A.(2).GN - Sunon Fans - DC Brushless Fans (BLDC)

PMD2412PTB1-A.(2).GN

Sunon Fans

FAN AXIAL 120X25MM 24VDC WIRE

PMD2412PTB1-A.(2).GN is a DC Brushless Fans (BLDC) manufactured by Sunon Fans. FAN AXIAL 120X25MM 24VDC WIRE. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 24VDC, size / dimension Square - 120mm L x 120mm H, termination 2 Wire Leads.

In Stock: 431

Product Attributes

AttributeValue
Product StatusActive
Voltage - Rated24VDC
Size / DimensionSquare - 120mm L x 120mm H
Width25.00mm
Air Flow150.0 CFM (4.20m³/min)
Static Pressure0.620 in H2O (154.4 Pa)
Bearing TypeBall
Fan TypeTubeaxial
Features-
Noise54.0dB(A)
Power (Watts)11.8 W
RPM4500 RPM
Termination2 Wire Leads
Ingress Protection-
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Approval AgencyCE, CUR, TUV, UL
Weight0.485 lb (219.99 g)

Frequently Asked Questions

PMD2412PTB1-A.(2).GN is a DC Brushless Fans (BLDC) manufactured by Sunon Fans. FAN AXIAL 120X25MM 24VDC WIRE

The operating temperature range of PMD2412PTB1-A.(2).GN is 14 ~ 158°F (-10 ~ 70°C).

The supply voltage of PMD2412PTB1-A.(2).GN is 24VDC.

The size of PMD2412PTB1-A.(2).GN is Square - 120mm L x 120mm H.
