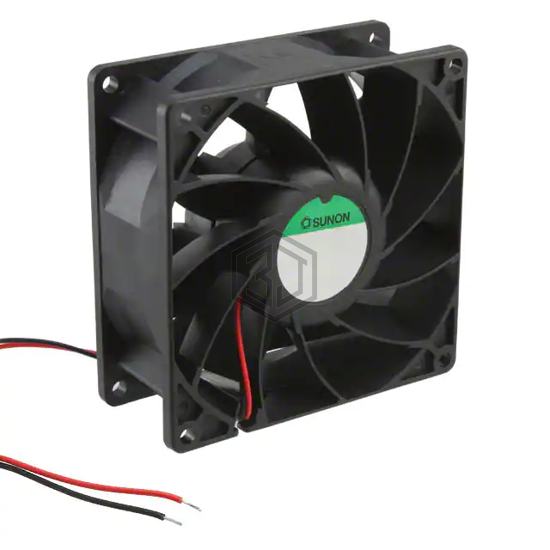

PMD1209PMB1-A.(2).GN - Sunon Fans - DC Brushless Fans (BLDC)

PMD1209PMB1-A.(2).GN

Sunon Fans

FAN AXIAL 92X38MM 12VDC WIRE

PMD1209PMB1-A.(2).GN is a DC Brushless Fans (BLDC) manufactured by Sunon Fans. FAN AXIAL 92X38MM 12VDC WIRE. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 12VDC, size / dimension Square - 92mm L x 92mm H, termination 2 Wire Leads.

In Stock: 938

Product Attributes

AttributeValue
Product StatusActive
Voltage - Rated12VDC
Size / DimensionSquare - 92mm L x 92mm H
Width38.00mm
Air Flow120.2 CFM (3.37m³/min)
Static Pressure0.710 in H2O (176.9 Pa)
Bearing TypeBall
Fan TypeTubeaxial
Features-
Noise57.6dB(A)
Power (Watts)12.5 W
RPM4900 RPM
Termination2 Wire Leads
Ingress Protection-
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Approval AgencyCE, CUR, TUV, UL
Weight0.419 lb (190.06 g)

Frequently Asked Questions

PMD1209PMB1-A.(2).GN is a DC Brushless Fans (BLDC) manufactured by Sunon Fans. FAN AXIAL 92X38MM 12VDC WIRE

The operating temperature range of PMD1209PMB1-A.(2).GN is 14 ~ 158°F (-10 ~ 70°C).

The supply voltage of PMD1209PMB1-A.(2).GN is 12VDC.

The size of PMD1209PMB1-A.(2).GN is Square - 92mm L x 92mm H.
