FAN 140X50.8MM BALL 48VDC WIRE

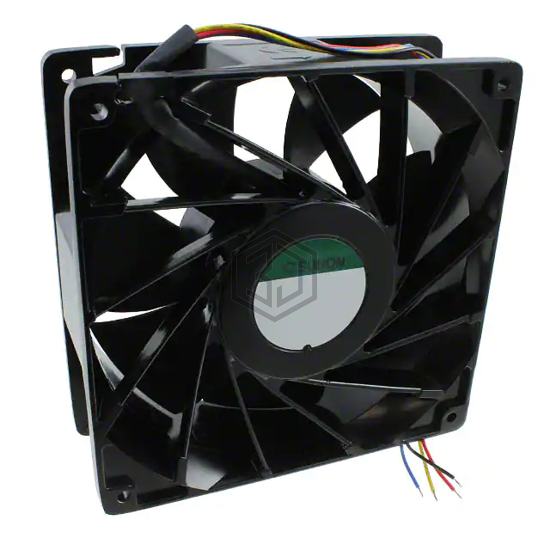

PFE0514B1-000U-S99 is a DC Brushless Fans (BLDC) manufactured by Sunon Fans. FAN 140X50.8MM BALL 48VDC WIRE. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 48VDC, size / dimension Square - 140mm L x 140mm H, termination 4 Wire Leads.
In Stock: 142
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 48VDC |
| Size / Dimension | Square - 140mm L x 140mm H |
| Width | 50.80mm |
| Air Flow | 250.3 CFM (7.01m³/min) |
| Static Pressure | 1.430 in H2O (356.2 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, PWM Control, Speed Sensor (Tach) |
| Noise | 63.4dB(A) |
| Power (Watts) | 22.56 W |
| RPM | 5000 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CUR, TUV, UL |
| Weight | 1.4 lbs (635.0 g) |
Submit your RFQ for PFE0514B1-000U-S99 and get a quote within 24 hours.
