FAN 80X25MM 12VDC IP68 PWM 60CFM

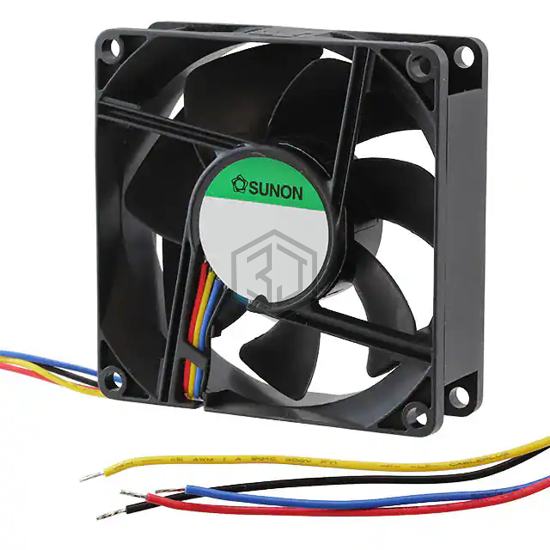

GF80251B1-000U-SE9 is a DC Brushless Fans (BLDC) manufactured by Sunon Fans. FAN 80X25MM 12VDC IP68 PWM 60CFM. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 12VDC, size / dimension Square - 80mm L x 80mm H, termination 4 Wire Leads.
In Stock: 150
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 80mm L x 80mm H |
| Width | 25.00mm |
| Air Flow | 60.0 CFM (1.68m³/min) |
| Static Pressure | 0.410 in H2O (102.1 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, PWM Control, Speed Sensor (Tach) |
| Noise | 47.5dB(A) |
| Power (Watts) | 3.96 W |
| RPM | 4800 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CUR, TUV, UL |
| Weight | 0.231 lb (104.78 g) |
