Shenzhen Sunlord Electronics Co., Ltd.

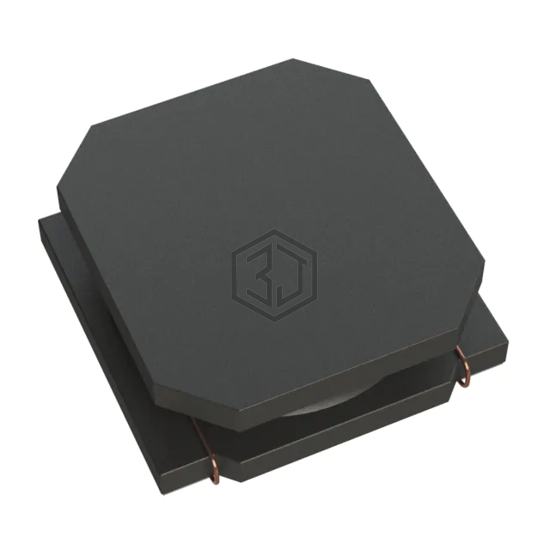

FIXED IND 3.3UH 3.4A 31MOHM SMD
SWPA5040S3R3NT is a Fixed Inductors manufactured by Shenzhen Sunlord Electronics Co., Ltd.. FIXED IND 3.3UH 3.4A 31MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.4 A.
In Stock: 1,081
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 3.4 A |
| Current - Saturation (Isat) | 4.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 31mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 32MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for SWPA5040S3R3NT and get a quote within 24 hours.
