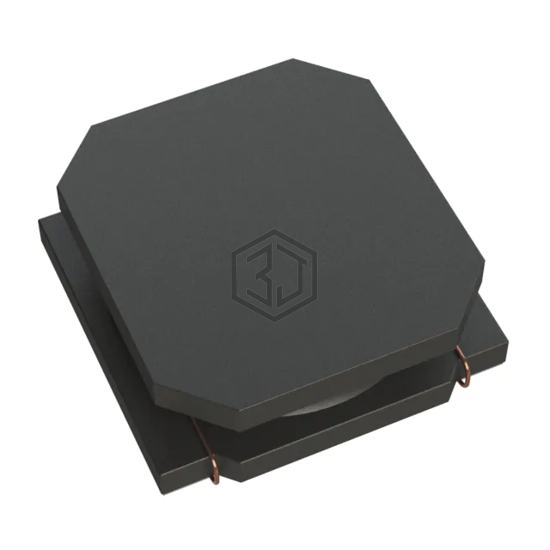

Shenzhen Sunlord Electronics Co., Ltd.
FIXED IND 150UH 350MA 2.795 OHM
SWPA5020S151MT is a Fixed Inductors manufactured by Shenzhen Sunlord Electronics Co., Ltd.. FIXED IND 150UH 350MA 2.795 OHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 350 mA.
In Stock: 2,789
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 150 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 350 mA |
| Current - Saturation (Isat) | 550mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.795Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 4MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for SWPA5020S151MT and get a quote within 24 hours.
