Shenzhen Sunlord Electronics Co., Ltd.
FIXED IND 1UH 800MA 400MOHM SMD

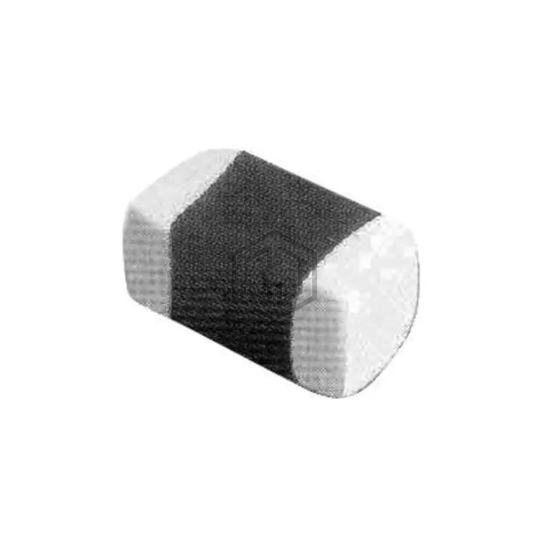

MPH160805S1R0MT is a Fixed Inductors manufactured by Shenzhen Sunlord Electronics Co., Ltd.. FIXED IND 1UH 800MA 400MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0603 (1608 Metric), current rating (amps) 800 mA.
In Stock: 5,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | 580mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 400mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 90MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
Submit your RFQ for MPH160805S1R0MT and get a quote within 24 hours.
