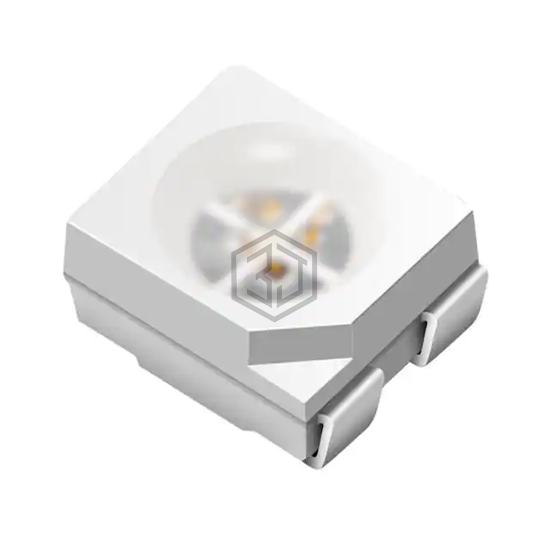

3.5X2.8MM RGY SMD LED
XZMDKMYKDG45S is a LED Indication - Discrete manufactured by SunLED. 3.5X2.8MM RGY SMD LED. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 3.3V Green, 1.95V Red, 2V Yellow, package / case 4-PLCC, color Green, Red, Yellow.
In Stock: 2,050
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red, Yellow |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 597mcd Green, 317mcd Red, 238mcd Yellow |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 3.3V Green, 1.95V Red, 2V Yellow |
| Current - Test | 20mA Green, 20mA Red, 20mA Yellow |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 525nm Green, 630nm Red, 590nm Yellow |
| Wavelength - Peak | 515nm Green, 645nm Red, 590nm Yellow |
| Features | - |
| Package / Case | 4-PLCC |
| Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.10mm |
Submit your RFQ for XZMDKMYKDG45S and get a quote within 24 hours.
