LED GRN/RED CLEAR 3SMD R/A

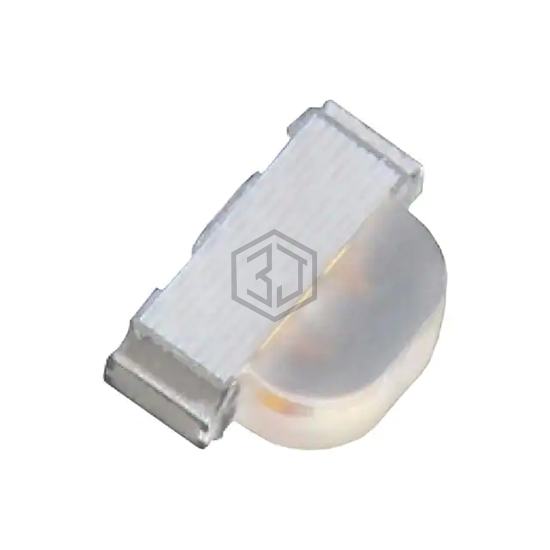

XZMDKDGK56W is a LED Indication - Discrete manufactured by SunLED. LED GRN/RED CLEAR 3SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, voltage - forward (vf) (typ) 3.3V Green, 1.95V Red, package / case 3-SMD, No Lead, color Green, Red.
In Stock: 85,036
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 317mcd Green, 79mcd Red |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 3.3V Green, 1.95V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 525nm Green, 630nm Red |
| Wavelength - Peak | 515nm Green, 645nm Red |
| Features | - |
| Package / Case | 3-SMD, No Lead |
| Supplier Device Package | 3-SMD |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Height (Max) | 1.15mm |
