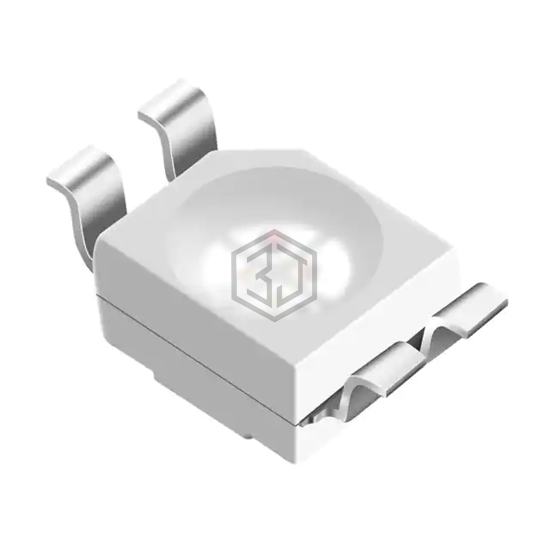

LED RGB CLEAR 4PLCC SMD
XZMDKCBDDG45S-9 is a LED Indication - Discrete manufactured by SunLED. LED RGB CLEAR 4PLCC SMD. Key specifications: mounting type Surface Mount, Bottom Entry, voltage - forward (vf) (typ) 1.95V Red, 3.3V Green, 3.3V Blue, package / case 4-SMD, Gull Wing, color Red, Green, Blue (RGB).
In Stock: 295,677
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 108mcd Red, 497mcd Green, 98mcd Blue |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 1.95V Red, 3.3V Green, 3.3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount, Bottom Entry |
| Wavelength - Dominant | 630nm Red, 525nm Green, 465nm Blue |
| Wavelength - Peak | 645nm Red, 515nm Green, 460nm Blue |
| Features | - |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 1.90mm |
