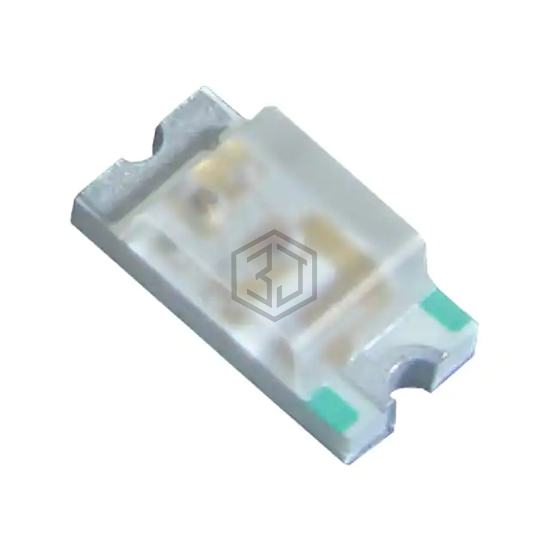

LED BLUE/RED CLEAR 2SMD
XZMDKCBD55W-4 is a LED Indication - Discrete manufactured by SunLED. LED BLUE/RED CLEAR 2SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 3.3V Blue, 1.95V Red, package / case 1206 (3216 Metric), color Blue, Red.
In Stock: 10,868
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Blue, Red |
| Configuration | Bidirectional |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 98mcd Blue, 69mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.60mm |
| Voltage - Forward (Vf) (Typ) | 3.3V Blue, 1.95V Red |
| Current - Test | 20mA Blue, 20mA Red |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 465nm Blue, 630nm Red |
| Wavelength - Peak | 460nm Blue, 645nm Red |
| Features | - |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 2-SMD |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Height (Max) | 1.30mm |
