LED RGB CLEAR 6SMD

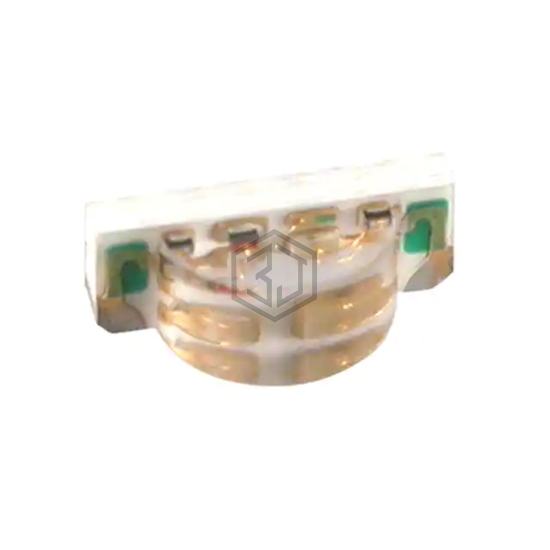

XZFBBZEBM2DGZ157W is a LED Indication - Discrete manufactured by SunLED. LED RGB CLEAR 6SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.1V Red, 3.2V Green, 3.3V Blue, package / case 6-SMD, No Lead, color Red, Green, Blue (RGB).
In Stock: 5,092
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 657mcd Red, 775mcd Green, 148mcd Blue |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.2V Green, 3.3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 150° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 624nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | 631nm Red, 520nm Green, 465nm Blue |
| Features | - |
| Package / Case | 6-SMD, No Lead |
| Supplier Device Package | 6-SMD |
| Size / Dimension | 3.00mm L x 1.50mm W |
| Height (Max) | 1.20mm |
Submit your RFQ for XZFBBZEBM2DGZ157W and get a quote within 24 hours.
