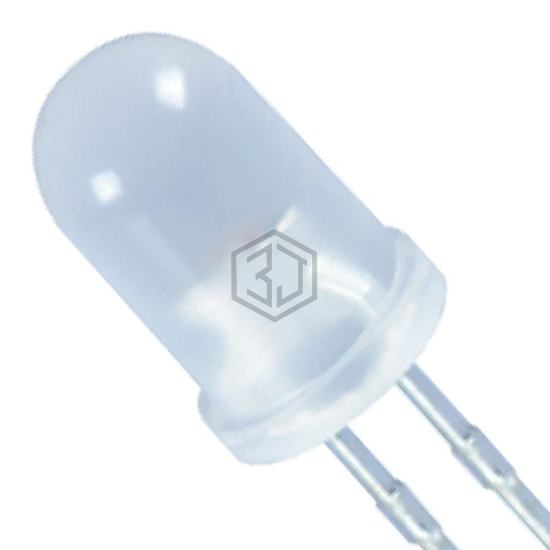

LED GRN/RED DIFFUSED T-1 3/4 T/H
XLUGR58M is a LED Indication - Discrete manufactured by SunLED. LED GRN/RED DIFFUSED T-1 3/4 T/H. Key specifications: mounting type Through Hole, voltage - forward (vf) (typ) 2.2V Green, 2V Red, package / case Radial, color Green, Red.
In Stock: 8,250
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Bidirectional |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 29mcd Green, 13mcd Red |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 60° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 568nm Green, 617nm Red |
| Wavelength - Peak | 565nm Green, 627nm Red |
| Features | - |
| Package / Case | Radial |
| Supplier Device Package | T-1 3/4 |
| Size / Dimension | - |
| Height (Max) | 8.60mm |
Submit your RFQ for XLUGR58M and get a quote within 24 hours.
