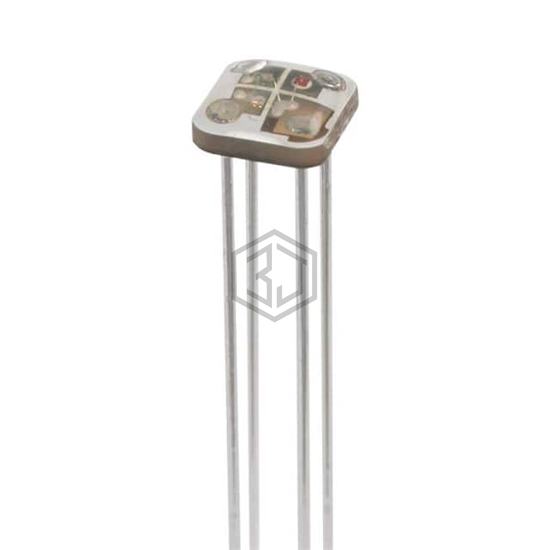

4.5X4.5MM RGB FULL COLOR LED - R
XKJZ07W-NV22ARD is a LED Indication - Discrete manufactured by SunLED. 4.5X4.5MM RGB FULL COLOR LED - R. Key specifications: mounting type Through Hole, voltage - forward (vf) (typ) 2.1V Red, 3.3V Green, 3.3V Blue, package / case Radial - 4 Leads, color Red, Green, Blue (RGB).
In Stock: 2,250
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 647mcd Red, 557mcd Green, 148mcd Blue |
| Lens Style | Round with Domed Top |
| Lens Size | 4.50mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.3V Green, 3.3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | - |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 624nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | 631nm Red, 515nm Green, 465nm Blue |
| Features | - |
| Package / Case | Radial - 4 Leads |
| Supplier Device Package | Radial |
| Size / Dimension | 4.50mm L x 4.50mm W |
| Height (Max) | 4.00mm |
