3J LIMITED
XCMDK12D

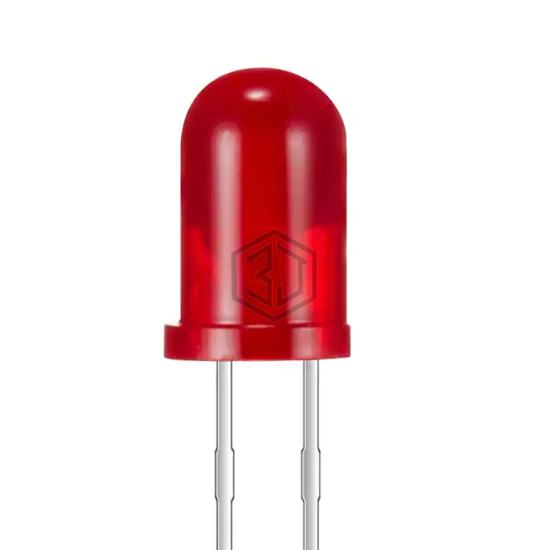

5MM LC RED LED
XCMDK12D is a LED Indication - Discrete manufactured by SunLED. 5MM LC RED LED. Key specifications: mounting type Through Hole, voltage - forward (vf) (typ) 1.75V, package / case Radial, color Red.
In Stock: 14,740
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red |
| Configuration | - |
| Lens Color | Red |
| Lens Transparency | Diffused |
| Millicandela Rating | 98mcd |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 1.75V |
| Current - Test | 2mA |
| Viewing Angle | 30° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 630nm |
| Wavelength - Peak | 645nm |
| Features | - |
| Package / Case | Radial |
| Supplier Device Package | T-1 3/4 (5mm) |
| Size / Dimension | - |
| Height (Max) | 9.85mm |
Frequently Asked Questions
XCMDK12D is a LED Indication - Discrete manufactured by SunLED. 5MM LC RED LED
The mounting type of XCMDK12D is Through Hole.
The supply voltage of XCMDK12D is 1.75V.
The package type of XCMDK12D is Radial.
The wavelength of XCMDK12D is 645nm.
