Sumida America Components Inc.
FIXED IND 1.2MH 740MA 1.28OHM TH

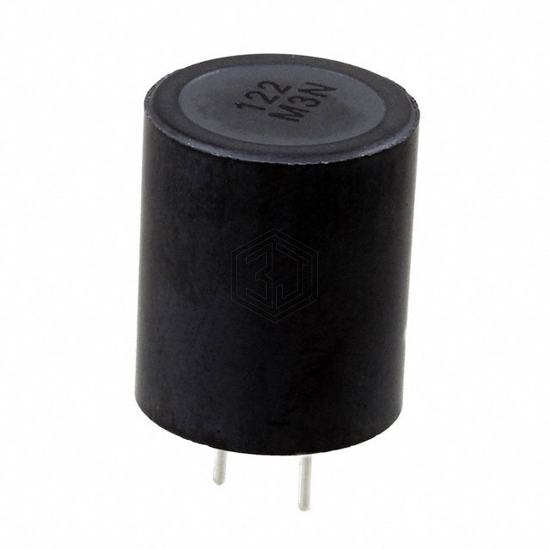

RCP1317NP-122L is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 1.2MH 740MA 1.28OHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, package / case Radial, Vertical Cylinder, current rating (amps) 740 mA.
In Stock: 9,945
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 1.2 mH |
| Tolerance | ±15% |
| Current Rating (Amps) | 740 mA |
| Current - Saturation (Isat) | 800mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.28Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.531" Dia (13.50mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
